Understanding JPA relationships

Modeling database relationships correctly is essential for any backend application. In JPA (Java Persistence API), incorrect or sub-optimal entity mappings can lead to data inconsistency and performance issues.

There are 3 main types of relationships:

One-to-One
One-to-Many / Many-to-One
Many-to-Many

Let's explore these relationships using a simple e-commerce domain model:

Customer
Address
Cart
Product

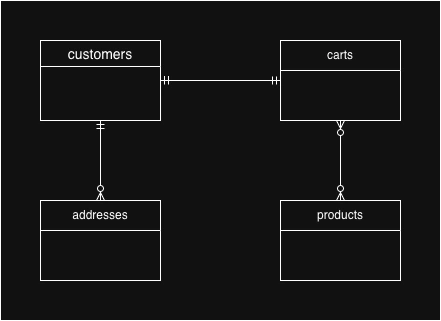

ecommerce-er-diagram

One-to-One: A customer has one cart, and a cart belongs to one customer.
One-to-Many: A customer has multiple addresses.
Many-to-One: Multiple addresses belong to one customer.
Many-to-Many: A cart can have multiple products, and a product can be in multiple carts.

Defining the relationships through JPA annotations:

@OneToOne

In a one-to-one relationship, we must decide which table owns the relationship (stores the foreign key). Here, Cart entity (carts table) is the owning side because it has @JoinColumn.

@Entity
@Table(name = "carts")
public class Cart {

  @OneToOne(fetch = FetchType.LAZY, optional = false)
  @JoinColumn(name = "customer_id", nullable = false, unique = true)
  private Customer customer;
}

The Customer entity is the inverse side. It has a reference to Cart using mappedBy.

@Entity
@Table(name = "customers")
public class Customer {

  @Id
  @GeneratedValue(strategy = GenerationType.UUID)
  private UUID id;

  @OneToOne(
    mappedBy = "customer",
    cascade = CascadeType.ALL,
    orphanRemoval = true,
    fetch = FetchType.LAZY
  )
  private Cart cart;
}

fetch defaults to EAGER. Set it to LAZY to prevent loading the associated entity unless explicitly accessed.

@OneToMany and @ManyToOne

In one-to-many/many-to-one relationships, the many side is almost always the owning side. In this example, Address entity (addresses table) stores the foreign key from customers table:

@Entity
@Table(name = "addresses")
public class Address {

  @ManyToOne(fetch = FetchType.LAZY, optional = false)
  @JoinColumn(name = "customer_id", nullable = false)
  private Customer customer;
}

The inverse side Customer has a reference to the list of addresses.

@Entity
@Table(name = "customers")
public class Customer {

  @Id
  @GeneratedValue(strategy = GenerationType.UUID)
  private UUID id;

  @OneToMany(
    mappedBy = "customer",
    cascade = CascadeType.ALL,
    orphanRemoval = true,
    fetch = FetchType.LAZY
  )
  private List<Address> addresses = new ArrayList<>();
}

@ManyToMany

Many-to-many relationships require a separate join table to hold the foreign keys from both entities.

@Entity
@Table(name = "carts")
public class Cart {

  @Id
  @GeneratedValue(strategy = GenerationType.UUID)
  private UUID id;

  @ManyToMany(cascade = {CascadeType.PERSIST, CascadeType.MERGE})
  @JoinTable(
    name = "cart_products",
    joinColumns = @JoinColumn(name = "cart_id"),
    inverseJoinColumns = @JoinColumn(name = "product_id")
  )
  private List<Product> products = new ArrayList<>();
}

The Product entity is the inverse side with reference to the list of carts:

@Entity
@Table(name = "products")
public class Product {

  @Id
  @GeneratedValue(strategy = GenerationType.UUID)
  private UUID id;

  @ManyToMany(mappedBy = "products", fetch = FetchType.LAZY)
  private List<Cart> carts = new ArrayList<>();
}

Unidirectional vs. Bidirectional Relationships

All the relationships demonstrated above are bidirectional. In JPA, relationships can be navigated in one or both directions:

Unidirectional: Only one entity contains a field that refers to the other. For example, if Customer has a Cart field, but Cart does not have a Customer field, the relationship is unidirectional from Customer to Cart.
Bidirectional: Both entities have a field that refers to each other. This allows navigation from either side (e.g., finding the cart for a customer, or finding the customer for a cart). In a bidirectional relationship:
- The owning side is responsible for updating the relationship in the database. It holds the foreign key (using @JoinColumn).
- The inverse side uses the mappedBy attribute to point to the field in the owning entity that manages the relationship.
